マニホールドシステム: AM II-16/32
ポート数: 16/32

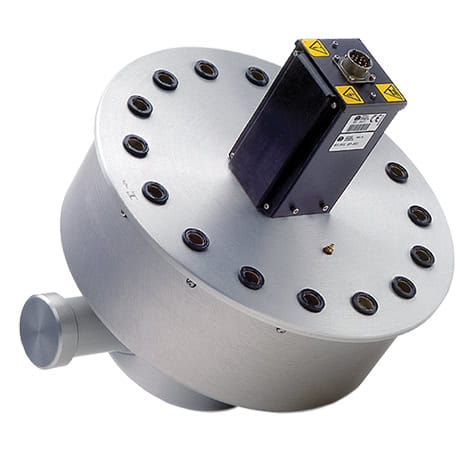

AM II – 16/32 マニホールドは気中パーティクルカウンターと組み合わせて使用する装置です。あらかじめ設定した複数の測定ポイントから順次サンプル空気を採取し、1台のパーティクルカウンターに送ります。マニホールドを用いると、測定ポイントごとに個別のパーティクルカウンターを設置する場合に比べ、費用対効果の高い高頻度モニタリングを行うことができます。AM II-16は最大16か所、AM II-32は最大32か所でサンプリング可能です。オプションのFacility Net モニタリングソフトウェアを使用すれば、効率的なモニタリングと測定データの管理が可能です。
AM II -16/32 が適応する気中パーティクルカウンタは：
- Lasair® Pro

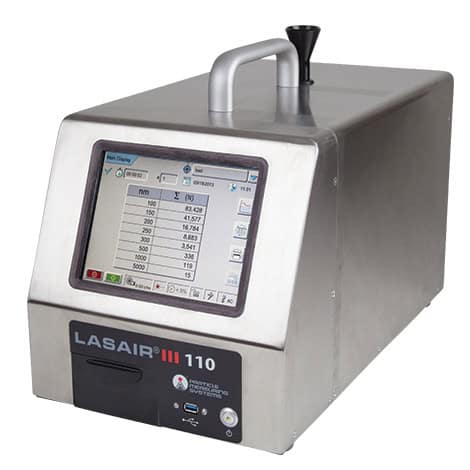

- Lasair® III 110
- Lasair® III 310C
- IsoAir® Pro-E
- IsoAir® Pro-Plus
主な仕様
- Multiplexed sequential particle monitoring of up to 32 locations with a single airborne particle counter
- Controlled by Facility Net or Pharmaceutical Net Software
- Programmable recipes and sample point sequences
- Assembly designed to eliminate contamination from valves
- Alarm for low vacuum; automatic shut-off for pump overheating
- Most economical cleanroom monitoring of fixed points at timed intervals
- Low cost per sample location
- Monitors a much larger area than a fixed particle counter
- Ethernet communications to facility monitoring system
- Easily programs a sampling routine, for either simple or complex sequences
- Automatically changes sampling recipe upon receiving alarm or external signal
- Large coverage area: each sample point can be up to 125 ft away
- Patented flow control ensures the aerosol manifold properly compensates for pressure drop, eliminating systematic particle undercounting of up to 15%
- Maintains constant flow (nominal 3 CFM) at each particle counting sample location to minimize gravitational particle setting
- With isokinetic sampling probes, captures particles at the same velocity as sample air, preventing distortion in particle size relationships
- Cleanroom Facility monitoring
- Monitoring large minienvironments
- Cleanroom verification and trend analysis
